pyecharts是基于Echarts图表的一个类库
Echarts是百度开源的一个可视化JavaScript库
一、pyecharts简介
pyecharts主要基于web浏览器进行显示，绘制图形（有折线图、柱状图、饼图、漏斗图、地图及极坐标图等）
安装
pip install pyecharts
二、pyecharts的使用方法
绘制图表
chart_name = Type() # 初始化具体类型图表
chart_name.add() # 添加数据及配置顶
cahrt_name.render() # 生成本地文件（html，svg，jpeg，png，pdf，gif）
chart_name.render_notebook() # 在jupyter notebook中显式
三、pyecharts常用图表
1.柱状图 Bar
常用方法
add_xaxis # 添加x轴
add_yaxis # 添加y轴，可设置y轴参数，也可在全局设置中设置
set_global_opts # 全局配置设置
set_series_opts # 系列配置设置

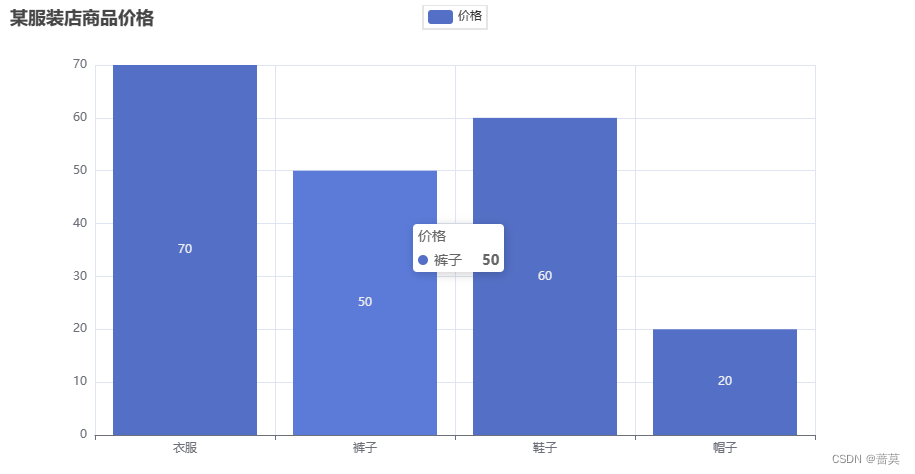

- 绘制柱状图
from pyecharts.charts import Bar
from pyecharts import options as opts
%matplotlib inline
bar = (Bar()
.add_xaxis(['衣服','裤子','鞋子','帽子'])
.add_yaxis('价格',[70,50,60,20])
.set_global_opts(title_opts=opts.TitleOpts(title='某服装店商品价格'))
)
bar.render_notebook()
# bar.render()# 生成html文件，render.html
链式调用
bar = Bar()
bar.add_xaxis(['衣服','裤子','鞋子','帽子'])
bar.add_yaxis('价格',[70,50,60,20])
bar.set_global_opts(title_opts=opts.TitleOpts(title='某服装店商品价格'))

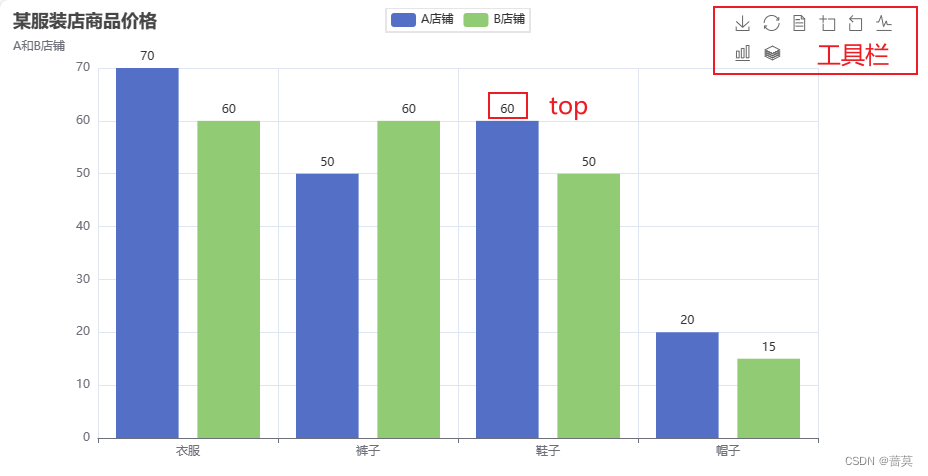

- 绘制多列柱状图
bar = Bar()
bar.add_xaxis(['衣服','裤子','鞋子','帽子'])
bar.add_yaxis('A店铺',[70,50,60,20])
bar.add_yaxis('B店铺',[60,60,50,15])
# toolbox_opts=opts.ToolboxOpts(is_show=True) # pyecharts工具栏
bar.set_global_opts(title_opts=opts.TitleOpts(title='某服装店商品价格',subtitle='A和B店铺'),toolbox_opts=opts.ToolboxOpts(is_show=True))
# 设置y轴值的位置，默认中间 - - - top, right, bottom等
bar.set_series_opts(label_opts=opts.LabelOpts(position='top'))
# 绘制水平方向的直方图
# bar.reversal_axis()
bar.render()
2.饼图 Pie
表现不同东西的占比情况
- 绘制圆形饼图
from pyecharts.charts import Pie
from pyecharts import options as opts
%matplotlib inline
ls = ['apple','banana','orange','grape']
num = [15,40,20,25]
c = Pie()
# radius设置饼图半径，arg1是内圈半径，arg2是外圈半径
# center设置中心坐标
# rosetype设置南丁格尔图（玫瑰图），有radius和area两种表现形式
c.add('',[list(z) for z in zip(ls,num)],radius=[50,200])
# pos_top距离顶端的位置，pos_left距离左端的位置
c.set_global_opts(title_opts=opts.TitleOpts(title = '水果占比'),legend_opts=opts.LegendOpts(orient='vertical',pos_top='7%',pos_left='0%'))
c.set_series_opts(label_opts=opts.LabelOpts(formatter='{b}:{c}',font_size=20))
c.render_notebook()

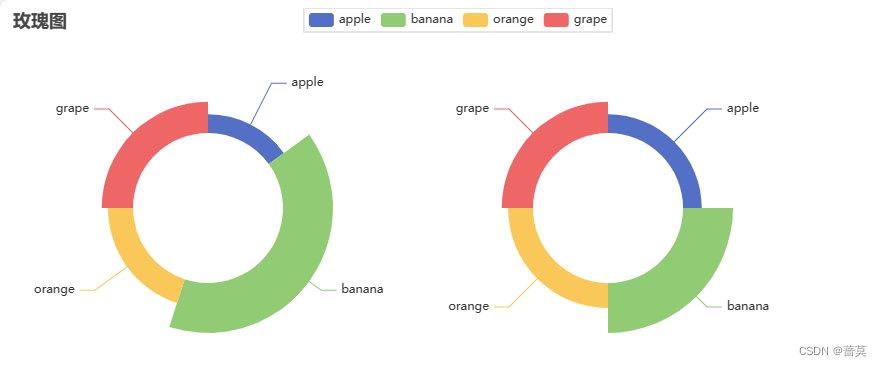

- 玫瑰图
ls = ['apple','banana','orange','grape']
num = [15,40,20,25]
c = Pie()
c.add('',[list(z) for z in zip(ls,num)],radius=['30%','50%'],rosetype='radius',center=[200,200])
c.add('',[list(z) for z in zip(ls,num)],radius=['30%','50%'],rosetype='area',center=[600,200])
c.set_global_opts(title_opts=opts.TitleOpts(title = '玫瑰图'))
c.render_notebook()

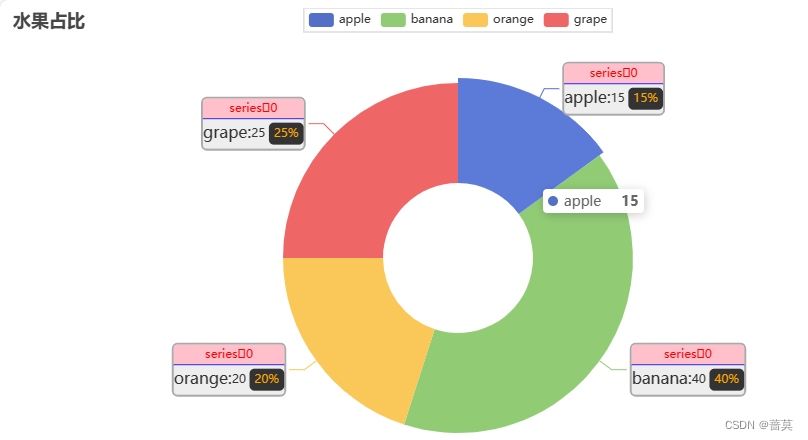

- rich参数应用，可通过rich设置很多饼图属性
ls = ['apple','banana','orange','grape']
num = [15,40,20,25]
c = Pie()
c.add('',[list(z) for z in zip(ls,num)],radius=['30%','70%'],
label_opts=opts.LabelOpts(position='outside',
formatter="{a|{a}}{abg|}\n{hr|}\n{b|{b}:}{c} {per|{d}%}",
background_color='#eee',
border_color='#aaa',border_width=2,border_radius=4,
rich = {'a':{'color':'red','linehight':20,'align':'center'},
'abg':{'backgroundColor':'pink','width':'100%','align':'right','height':20,'borderRadius':[4,4,0,0]},
'hr':{'borderColor':'blue','width':'100%','borderWidth':0.5,'height':0},
'b':{'fontSize':16,'lineHeight':30},
'per':{'color':'orange','backgroundColor':'balck','padding':[5,5],'borderRadius':5}
}))
c.set_global_opts(title_opts=opts.TitleOpts(title = '水果占比'))
c.render_notebook()

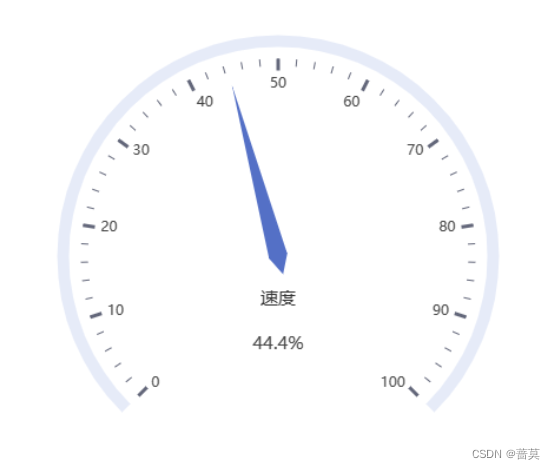

3.仪表盘 Gauge
from pyecharts.charts import Gauge,Page
from pyecharts import options as opts
%matplotlib inline
c = Gauge()
# c.add('速度',[('速度',44.4)],axislabel_opts=opts.AxisLineOpts(linestyle_opts=opts.LineStyleOpts(color=[(0.3,'#67e0e3'),(0.7,'#37a3da'),(1,'#fd666d')],width=30)))
c.add('速度',[('速度',44.4)])
c.set_global_opts(title_opts=opts.TitleOpts(title='title'),legend_opts=opts.LegendOpts(is_show=False))
c.render_notebook()

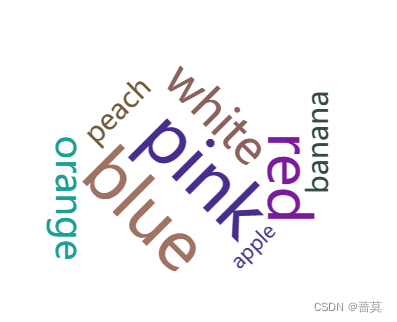

4.词云 WordCloud
from pyecharts.charts import Page,WordCloud
from pyecharts.globals import SymbolType
from pyecharts import options as opts
words = [
('apple',243),('banana',345),('orange',425),('peach',329),
('white',534),('pink',784),('red',654),('blue',754)
]
c = WordCloud()
c.add('aaa',words,word_size_range=[20,70])
c.render_notebook()
5.组合图表
from pyecharts.charts import Bar,Grid,Line,Scatter
from pyecharts import options as opts
a = ['小米','三星','华为','honor','魅族','vivo','oppo']
ca = [124,74,72,60,87,60,113]
b = ['草莓','苹果','橘子','柚子','西瓜','葡萄','桃子']
cb = [119,57,115,75,115,127,65]
bar = Bar()
bar.add_xaxis(a)
bar.add_yaxis('A',ca)
bar.add_yaxis('B',cb)
bar.render_notebook()
line = Line()
line.add_xaxis(b)
line.add_yaxis('',ca)
line.add_yaxis('',cb)
line.render_notebook()
grid = Grid()
# 将bar放在离底部60%远的地方，离上方40%，如果opts.GridOpts()没有传参数，两个图是重叠在一起的
grid.add(bar,grid_opts=opts.GridOpts(pos_bottom='60%'))
grid.add(line,grid_opts=opts.GridOpts(pos_top='60%'))
grid.render_notebook()
散点图 Scatter
漏斗图 Funnel
K线图 Kline
